ClearFRP™

Transparent FRP Film

Siloxane resin impregnated transparent glass-fabric reinforced plastic (GFRP) films with high strength and modulus, and low thermal expansion coefficient. Optical transparency is obtained by precise refractive index matching between glass-fabric and cured siloxane matrix.

Features

  • Optically transparent film
  • High strength and elastic modulus
  • Low thermal expansion coefficient
  • High impact resistance to protect glass
  • Feasibility of high thermal resistance
  • Feasibility of high elongation or stretchability
  • All performances depend on siloxane matrix/glass-fabric configuration

ClearFRP™ Series

  1. Hard Coating ClearFRPTM Film
  2. Anti-Glare (AG) Hard Coating ClearFRPTM Film
  3. Protective ClearFRPTM Film on UTG (Ultra-thin Glass)
  4. Foldable ClearFRPTM Film on UTG (Ultra-thin Glass)

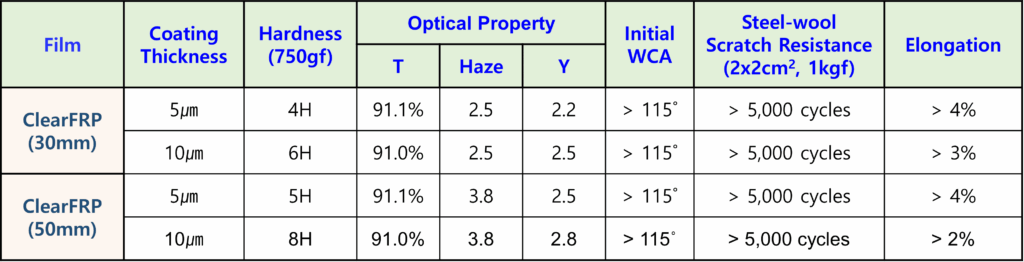

Hard Coating ClearFRP™ Film

High hardness and scratch resistance on high modulus ClearFRP™ film

Application : Protective film on UTG

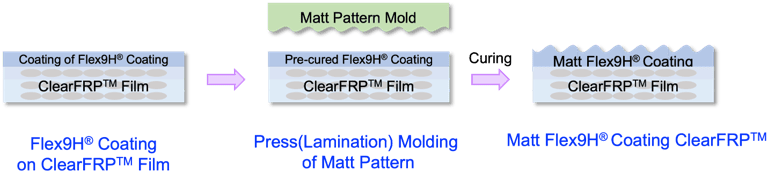

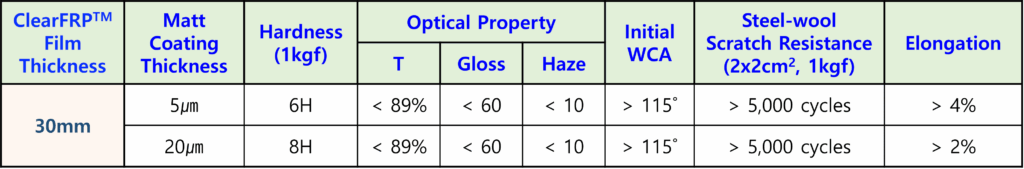

AG (Anti-Glare) Hard Coating ClearFRP™ Film

*Using AG etched glass mold (Gloss : 55)

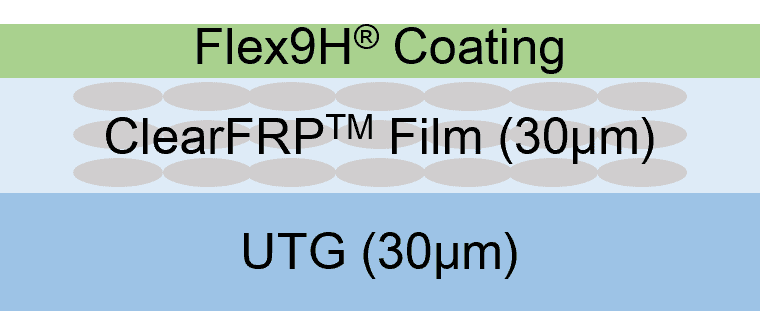

Protective ClearFRP™ Film on UTG

  • High modulus protective film on UTG
  • Excellent adhesion with UTG
  • No additional adhesive (OCA) to bond to UTG
  • No shatter of broken glass pieces
  • High optical transparency
  • AF function and high scratch resistance with hard coating

8H Hardness

2.5R In-folding

20cm Pen-drop

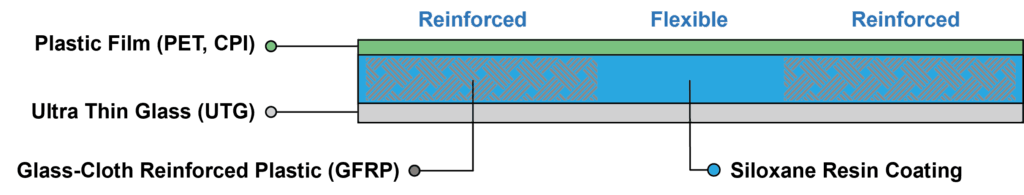

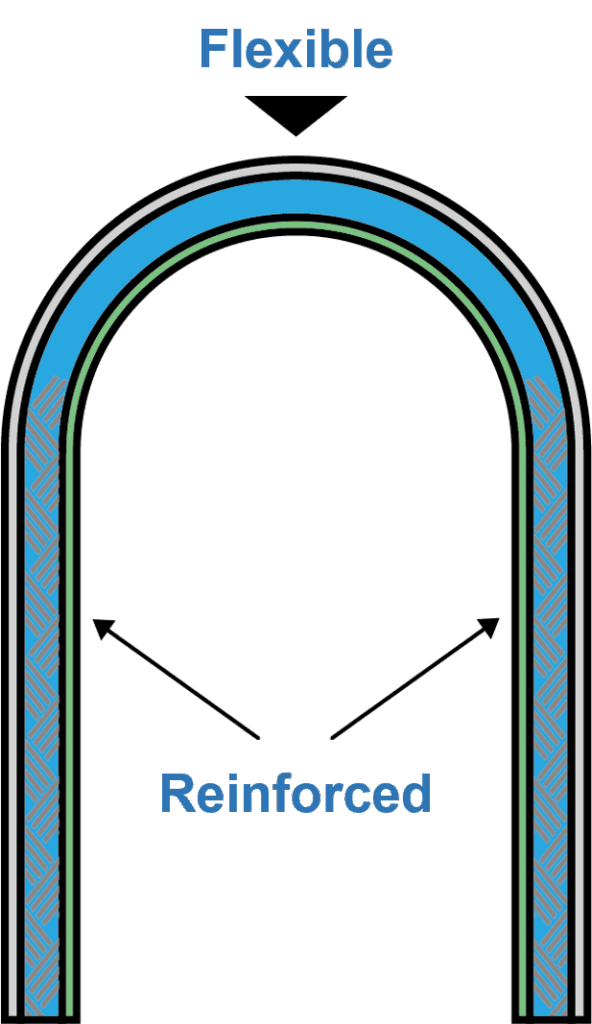

Foldable ClearFRP™ Film UTG

UTG bonded with composite structured protective film in which transparent glass-fabric reinforced plastic (ClearFRP) film in the non-folding (reinforced) part and siloxane resin coating film in the folding (flexible) part. High modulus in the reinforced non-folding part makes high strength and impact resistance but low modulus in the flexible folding part represents better foldability.
